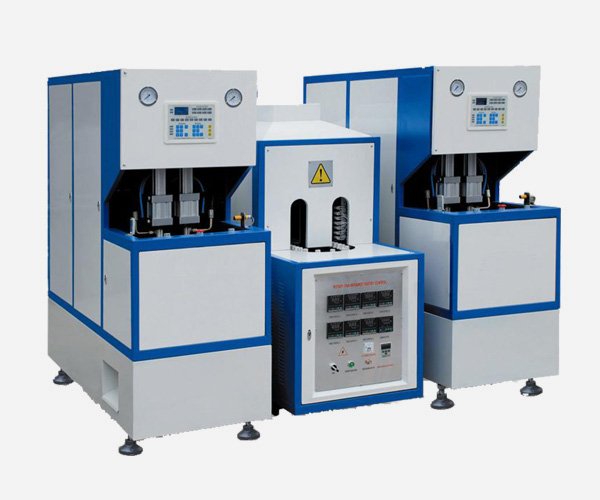

Semi Automatic PET Blow Moulding Machine
Overview
These versatile machines can be used to manufacture different kinds of bottles with neck diameter of 20 mm to 150 mm. The bottle / jar capacity can range from 40 ml up until 5000 ml.
Features
Mould Clamping
• Hydraulic mould clamping system to enhance power efficiency. It saves air consumption and hence reduces production cost.
• Unique mechanical lock system for positive locking.
Heating
• Close loop heating system and auto chamber temperature control (to compensate variation in preform heating due to ambient temperature).
• Optional auto preform temperature control.
• Positioning of heaters is better, ensuring faster and simpler heating. Individual heater position is adjustable in both axes to achieve optimum heating.
• Air ventilation with controllable venting in heating chamber (for better heat penetration control).
• Start-stop index type oven to minimize variation in temperature of both preforms coming out of chamber at a time.
Product Range
Versatile range to produce 40 ml to 5000 ml bottle / jar. Neck diameter ranging from 20 mm to 120 mm.Due to hydraulic operations, mould can be stopped where required. In case of small diameter bottles, this increases production rate and reduces production cost.
Safety
• Two hand operations (till mould close function is complete) to prevent accidents.
• ELCB in main supply for protection against electric shock.
• Individual MCBS for all heaters.
Specifications
| SEMI AUTOMATIC PET STRETCH BLOW MOULDING MACHINE (PREFORM TO BOTTLE) | |
| Capacity | 200ml to 2000ml |
| Production Capacity | 800-1200 Bottle /Hr |
| Bottle Neck Dia | 25 to 30 mm |
| MOULD | |
| Max. mould thickness | 150mm |
| Min. mould thickness | 140mm |
| Clamping Force | 8 Ton |
| OVEN | |
| Number Of Pre-Form Holders | 54 |
| Number of heating modules | 1 |
| Number of heating zones | 8 |
| Lamp power | 2000 watts |
| Lamp Length | 1120 mm |
| STRETCHING | |
| Number of stretch Rods | 2 |
| Stretching stroke Max | 400 mm |
